Product Overview
Reusable 6" x 9" job ticket holder designed to carry and display work orders, routing sheets, job travelers, tags, barcodes, QR codes, labels, and other active workplace documents.
The holder uses 8 GA clear PVC on the front and back with sewn vinyl trim. A top opening provides access to the document pocket, while the reinforced header and metal eyelet allow the holder to hang from hooks, carts, workstations, boards, bins, and other workplace fixtures.
Sixteen trim colors are available for visual workflow identification, department coding, job priority, routing, status identification, inventory organization, and other color-coded processes.
6x9 Job Ticket Holder Specifications
| Specification | Details |
|---|---|
| Brand | TIE Office-Mates |
| Product Number | 85203 |
| Product Type | Heavy-duty sewn job ticket holder / work order holder |
| Nominal Insert Size | 6" x 9" |
| Inside Capacity | 6.5" wide x 9.5" high |
| Overall Outside Size | 7" wide x 11" high |
| Clear Panel Material | 8 GA clear PVC (nominal 7.5 mil) |
| Construction | Sewn construction with color vinyl trim |
| Opening | Top-loading in the standard portrait orientation |
| Hanging Method |
Brass metal hanging 1/4" eyelet in reinforced header |
| Color Options | Black, Red, Royal Blue, Forest Green, Yellow, Burnt Orange, Sunburst Orange, Pink, Purple, Burgundy, Grey, White, Kelly Green, Teal, Sky Blue, Brown |
| Pack Quantity | 25 job ticket holders per pack |
| NSN Reference | Comparable to NSN 7510-00-272-9804 |

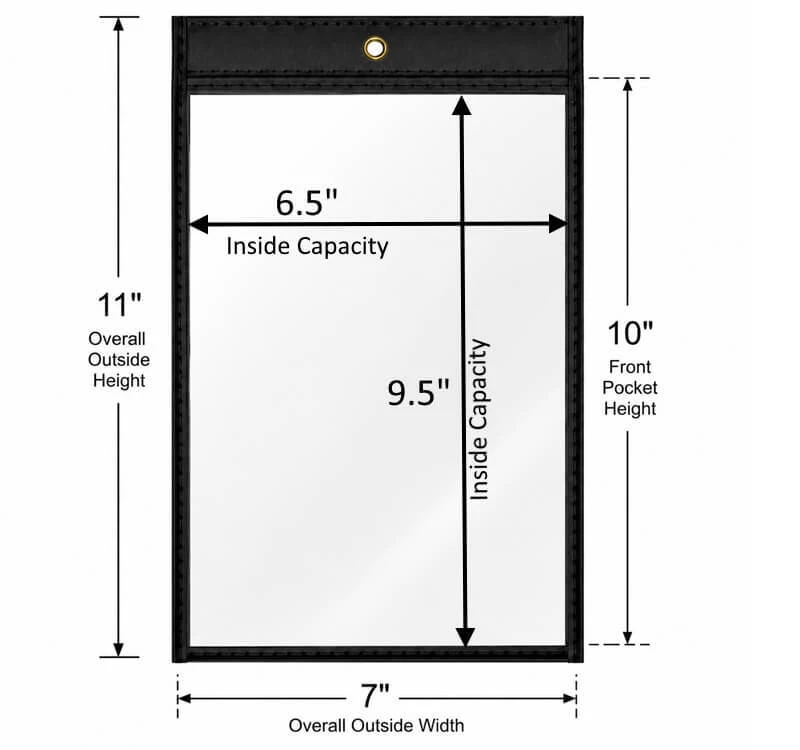

TIE 85203 6x9 Job Ticket Holder Dimensions & Size Information
8 Mil Clear PVC & Reinforced Sewn Construction
- Approximately 8 mil clear PVC: Clear front and back panels keep job documentation visible while inside the holder.
- Reinforced sewn trim: The perimeter is stitched with vinyl edging to reinforce the clear PVC panels and create a durable reusable holder.
- Top-loading opening: Documents are inserted and removed from one end of the holder.
- Hanging header: The reinforced top header provides a dedicated hanging point without reducing the usable document pocket.
- Barcode and QR visibility: Clear panels allow printed barcodes, QR codes, routing information, identification numbers, and other visible document data to remain readable through the holder.
- Reusable construction: Documents can be changed repeatedly without laminating or permanently attaching the paperwork.
Color-Coded 6x9 Job Ticket Holder Options
Available with 16 trim colors. The color remains visible around the perimeter of the clear document area, allowing facilities to add a visual identification layer without obscuring the information inside the holder.
Color-coded holders can be assigned according to a facility's own workflow system, such as department, work center, production stage, job priority, inspection status, product group, routing destination, or other internally defined categories.
Hanging Options: 1 Eyelet or 3 Eyelets
The standard TIE 85203 configuration uses a single hanging eyelet centered in the reinforced top header. This configuration is suitable for hanging job tickets and work orders from hooks, carts, boards, bins, workstations, and similar fixtures.
An optional 3-eyelet configuration is also available for applications that use multiple attachment points, rails, wires, or fixtures where additional positioning or stability is useful.
For buyers comparing this product with NSN 7510-00-272-9804, the standard 1-eyelet configuration more closely corresponds to the one-eyelet characteristic identified for the referenced NSN.
Applications for 6x9 Job Ticket Holders
- Job travelers and production job tickets
- Manufacturing work orders and routing sheets
- Work-in-process documentation
- Inspection and quality-control paperwork
- Maintenance and service work orders
- Warehouse identification and inventory documents
- Barcode and QR-code documents
- Equipment status and scheduling cards
- Parts identification and batch documentation
- Shipping, receiving, and material-handling paperwork
Industries & Work Environments
This reusable hanging job ticket holder is designed for document handling and visual workflow applications in environments such as:
- Manufacturing and assembly operations
- Warehouses and distribution facilities
- Maintenance departments
- Production planning and scheduling areas
- Quality and inspection departments
- Shipping and receiving operations
- Machine shops and fabrication facilities
- Inventory and material-control operations
NSN 7510-00-272-9804 Comparison & Procurement Reference
TIE Office-Mates 85203 is comparable to NSN 7510-00-272-9804. This comparison describes similarities in product size, material, construction, opening style, and hanging configuration. It does not represent government approval, certification, source approval, or designation as an official replacement.
DLA PUB LOG / FLIS characteristics associated with NSN 7510-00-272-9804 identify a clear vinyl holder with a nominal 0.0075" single-wall thickness (7.5 mil), sewn or stitched-over-tape construction, a one-end opening, and one eyelet.
The 85203 uses approximately 8 GA clear PVC with reinforced sewn trim and is available in a standard 1-eyelet configuration. The 7.5 mil TIE material is close to the nominal 7.5 mil single-wall material identified in the referenced NSN characteristics.
Alternative Procurement Terminology
This 6x9 85203 Job Ticket Holder may also be described in industrial, purchasing, and maintenance environments as a 6x9 job ticket holder, shop ticket holder, work order holder, routing envelope, clear vinyl sleeve, hanging job ticket holder, sewn document holder, or NSN job ticket holder comparable to 7510-00-272-9804.
